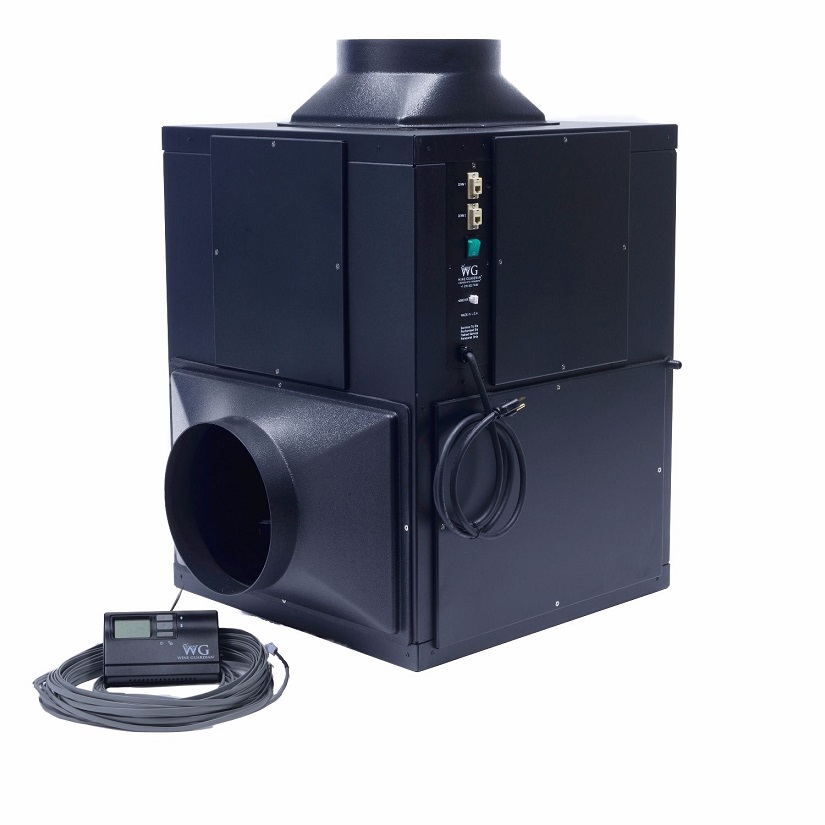

Wine Guardian D088V 8K Vertical Ducted Wine Cellar Cooler

• Cooling Capacity @ 70 F: 9900/6800 & 10250/7160 BTUH
• Airflow: 435 / 485 cfm (cubic feet per minute)
• Capacity: 1500 - 6000 Cu. Ft.
• Weight: 175lbs.
• Condensate Drain: .5" ID

The D088V (vertical design) are fully ducted wine cellar cooling units for medium to large residential and commercial applications. Use the wine cellar cooling calculator to determine if the unit is suitable for your wine storage application, depending upon use and room construction. Contractor installation is recommended. The maximum capacity is 8,640 BTU/h (2.53 Kilowatts). Model D088V is a vertical system with a sleek design, ideal for installation in narrow spaces where a small footprint is required, such as in a small mechanical room. Both models are available in a water-cooled configuration.

The remote sensor allows the owner to monitor temperature and humidity at up to three (3) different locations in the cellar, perfect for large cellars or for multiple rooms being cooled by one Wine Guardian unit. The D088V is a vertical configuration, which is ideal for cellars with little mechanical room space.

♦ Click to view more Wine Guardian Units

• Multiple capacities for cellars of all sizes and configuration.
• Lightweight, corrosion-resistant, all aluminum outer body
• Complete Self Contain Design

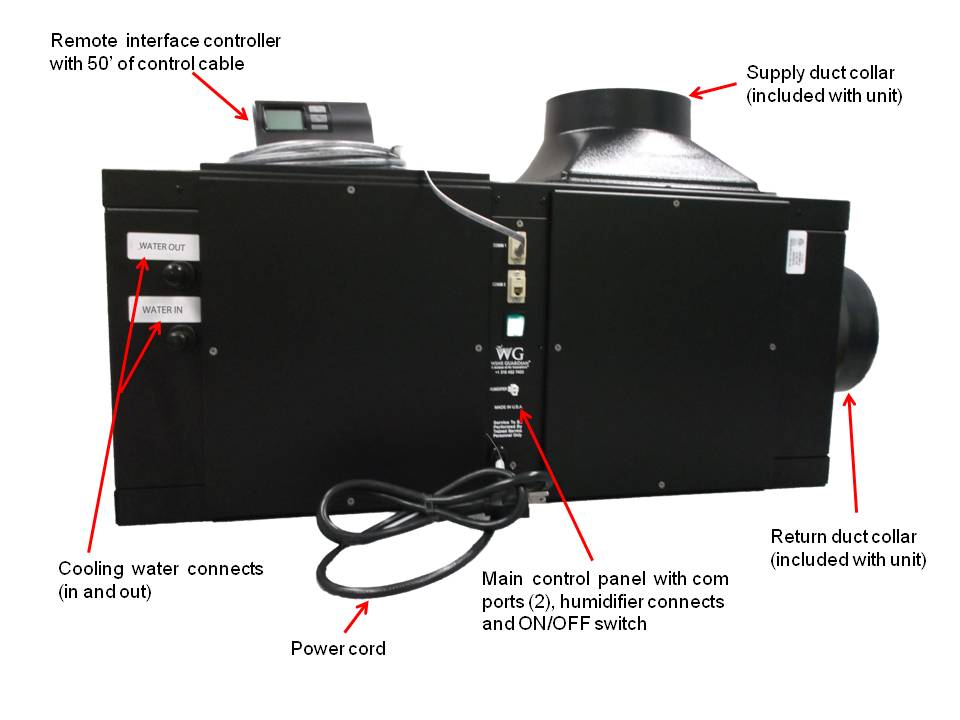

• Supply and return duct collars (standard)
• Multiple supply air openings for installation flexibility
• Remote user interface for temperature control and humidity readout.
• High static pressure fans for extended lengths of ductwork.
• Removable control panel for easy access.
• Factory tested prior to shipment.
• Certified by ETL to Underwriters Laboratories standards for safety and performance.
• Factory Service Hotline
• Cleanable filter on condender coil

• Model: D088V

• Power: 208/230 volts
• Cooling Capacity @ 70 F: 9900/6800 & 10250/7160 BTUH
• Rated Air Flow: 435 / 485
• Weight: 175lbs.
• Dimensions (L x W x H): 22" x 22" x 29"
• Cabinet Construction: Aluminum
• Cabinet Finish: Black - Textured Epoxy Powder Coat
• Safety: ETL certified

• Supply Duct Collar
• Return Duct Collar
• Combo Duct Kit
• Flexible Ductwork
• Integrated Humidifier
• Low Ambient Kit
• Electric Heat
• Supply Grill
• Return Grill

Additional Accessories

• Remote Interface Controller
• Remote Sensor
• Mounting Brackets
• Condensate Pump
• 3 Year Extended Warrenty

• Ducted Systems Specifications (60 Hz)
• Installation, Operation and Maintenance Manual
• Ducted Systems Options (60 Hz)
• Ducted Cooling Units Warranty

• Wine Guardian Ducted Applications Guide
• Wine Guardian Ducted Features and Benefits
• Wine Guardian Ducted Installation Guide
• Wine Guardian Ducted Serving Temperature Option
