Santa Fe Ultra70 Dehumidifier

• Model: Ultra70
• Part Number: 4033730
• Water Removal: 70 Pints/Day (8.75 Gallons/Day)
• Airflow: 150 CFM
• Power: 5.1 AMPS, 110-120V
• Temperature Range: 49°F Min., 95°F Max.
• Weight: 55 lbs.

THE SANTA FE ULTRA70 DEHUMIDIFIER IS THE FIRST COMPACT, HIGH-EFFICIENCY, WHOLE HOUSE VENTILATING DEHUMIDIFIER DESIGNED TO FIT IN TIGHT, LOW-CLEARANCE APPLICATIONS.

The unit removes up to 70 pints per day, is exceeds Department of Energy standards and provides effective air filtration (MERV-13). The Ultra Aire 70H it ideal for a small home, condo, or apartment application. The unit can be tied into a forced air duct system, ducted with separate ducting, or used in a freestanding application. It can be installed in mechanical rooms, closets, attics, basements, and crawlspaces.

The Santa Fe Ultra70 Dehumidifier has an innovative cabinet design that easily converts to either vertical or horizontal airflow discharge which allows for easier installation in tight spaces. Flexible airflow configurations allow the Ultra Aire 70H to be installed in locations where other dehumidifiers don’t fit due to duct issues and size constraints.

Optional fresh outdoor air may be ducted to the unit via a “T" to the inlet duct. This provides fresh air to dilute pollutants and maintain a normal oxygen content in the air. The amount of fresh air ventilation can be regulated by a variety of dampers and controls.

The Santa Fe Ultra70 includes air filtration to improve indoor air quality.

Click here to view more of Ultra-Aire Dehumidifiers

• Energy Efficient: Every Ultra Aire dehumidifier exceeds Department of Energy standards.

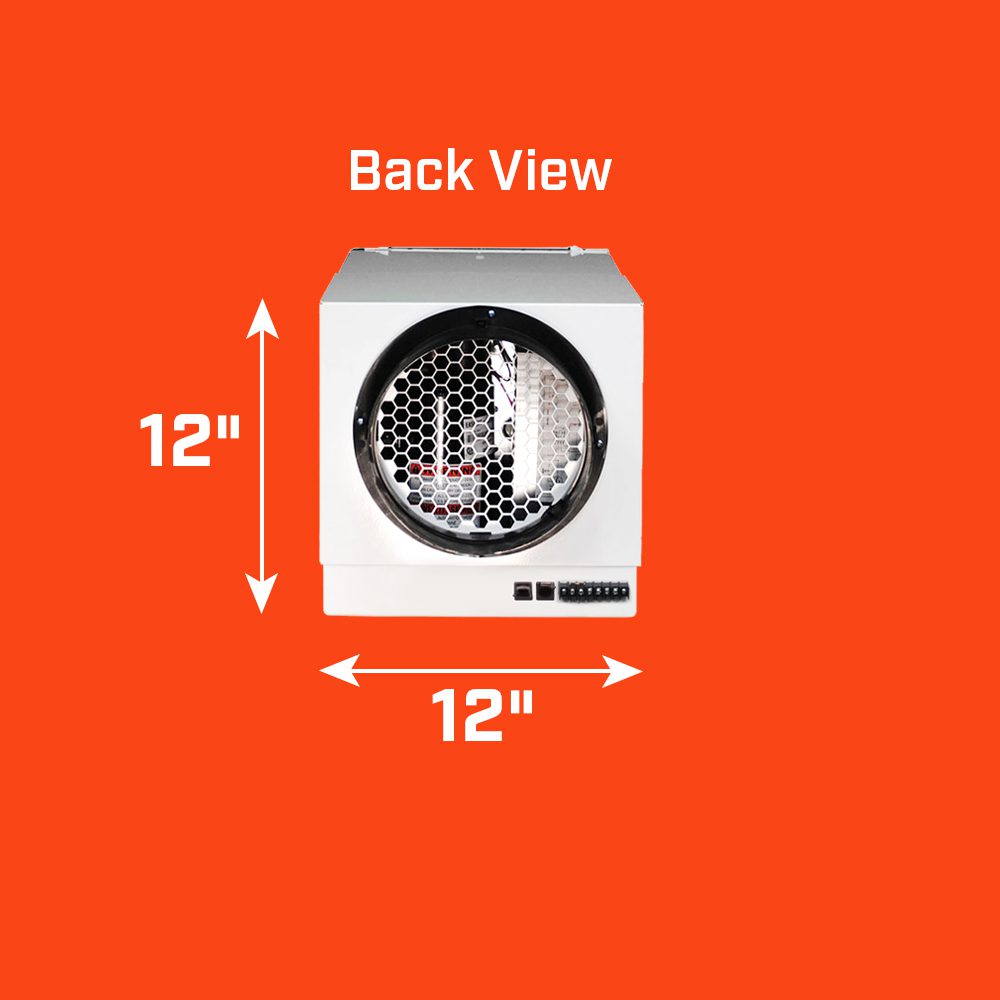

• Small Footprint: (12"W x 12"H x 28"L) designed to fit in tight, low-clearance applications.
• Innovative Cabinet Design: Converts to either vertical or horizontal airflow discharge.
• Merv-13 Filter: Provides superior air filtration.
• Rotatable exhaust outlet provides for horizontal or vertical discharge
• Ducting option for fresh outdoor air ventilation
• Onboard dehumidistat with optional DEH 3000/R digital control
• Push button reset for transformer protection

Water Removal Rates(Pints/Day)

• 70 Pints/Day (8.75 Gallons/Day)

General

• Part Number: 4033730
• Duct Connections: 8" Round Inlet, 8" Round Outlet
• Drain Connection: 3/4" Threaded Female NPT
• Refrigerant: R410A, 15 oz.
• Warranty: 2 Year Parts / 6 Years Sealed System

Performance

• Water Removal: 70 Pints / 8.75 Gallons
• Efficiency: 5.0 Pints/kWh
• Energy Factor: 2.4 L/kWh
• Blower: 150 CFM @ 0.0" WG, 140 CFM @ 0.2" WG, 130 CFM @ 0.4" WG
• Operating Temperature: 49°F Min., 95°F Max.
• Sizing: Up to 1,800 Sq. Ft. / 18,000 Cu. Ft.

Electrical

• Power Cord: 9', 115 VAC, Ground
• Power: 580 watts @ 80°F and 60% RH
• Supply Voltage: 115 volt – 1 phase – 60 Hz
• Current Draw: 5.1 amps
• Circuit Requirement: 15 Amps

Unit Dimensions

• Width: 12"
• Height: 12"
• Depth: 28"
• Weight: 55 lbs.

Shipping Dimensions

• Width: 15
• Height: 16"
• Depth: 31"
• Weight: 65 lbs.
