Santa Fe Compact70 Dehumidifier

• Model: Compact70
• Part Number: 4033600
• Water Removal: 70 Pints/Day
• Blower: 150 CFM @ 0.0" WG
• Supply Voltage: 115 volt - 1 phase - 60 Hz
• Operating Temperature: 49°F Min., 95°F Max.
• Weight: 55 lbs

The Santa Fe Compact70 Dehumidifier is a powerful yet space-saving unit.

With a horizontal configuration and a flow-through design, this system removes excess moisture from low-clearance crawl spaces and tight basement areas to a small home theater.

Small but tough, the Compact Series and Advance Series fit into tight spaces where other dehumidifiers simply can’t. Extremely powerful and efficient, they tackle excess humidity to curb harmful mold growth in the harshest of condition

Click here to view more of Santa Fe Dehumidifiers

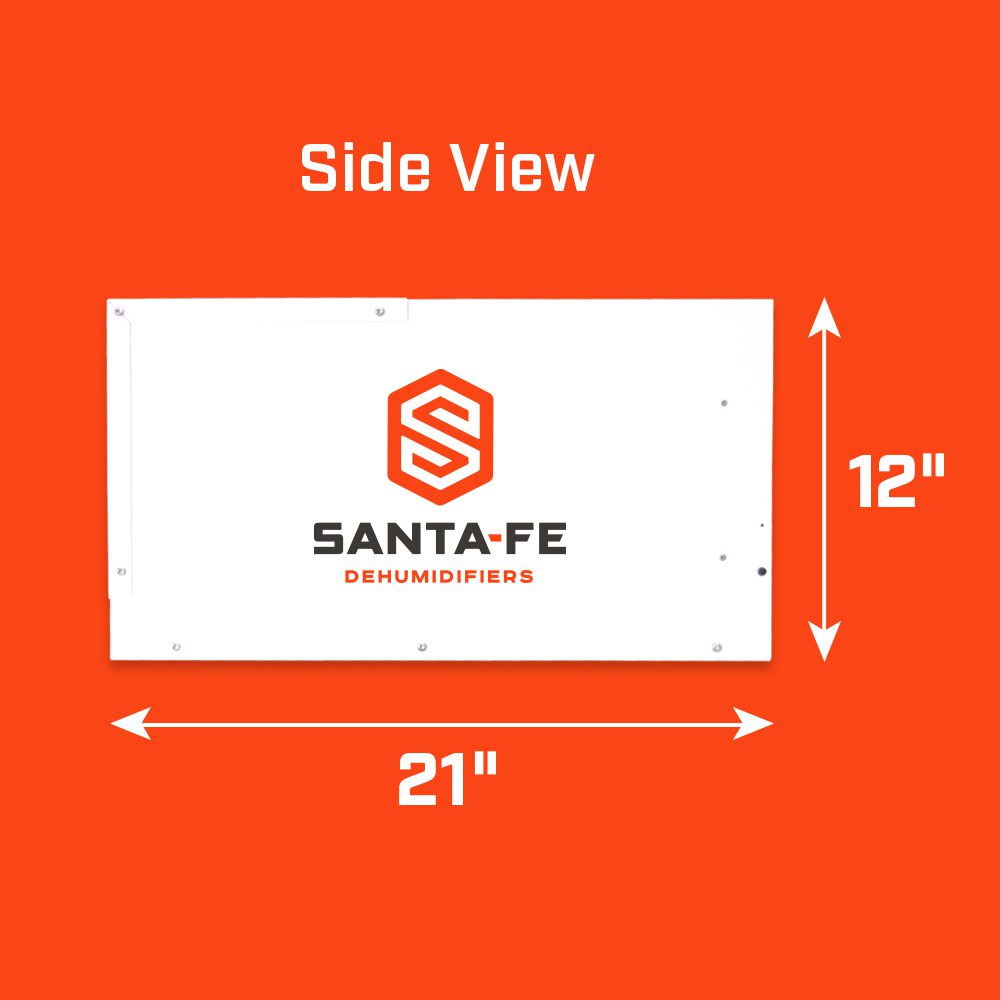

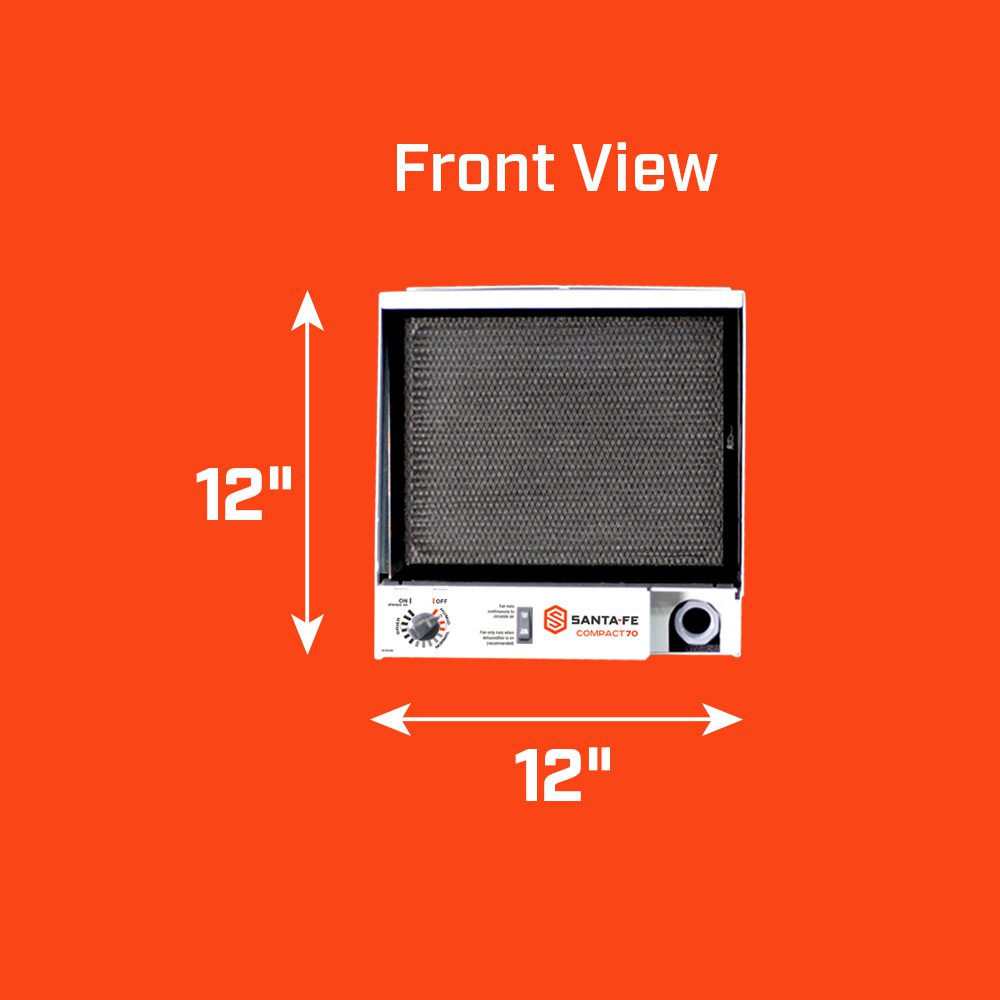

• Small footprint (12"x12"x21") fits low crawl spaces, basements, mechanical closets, or other small spaces
• Sized to fit between floor joists for convenient hanging installation

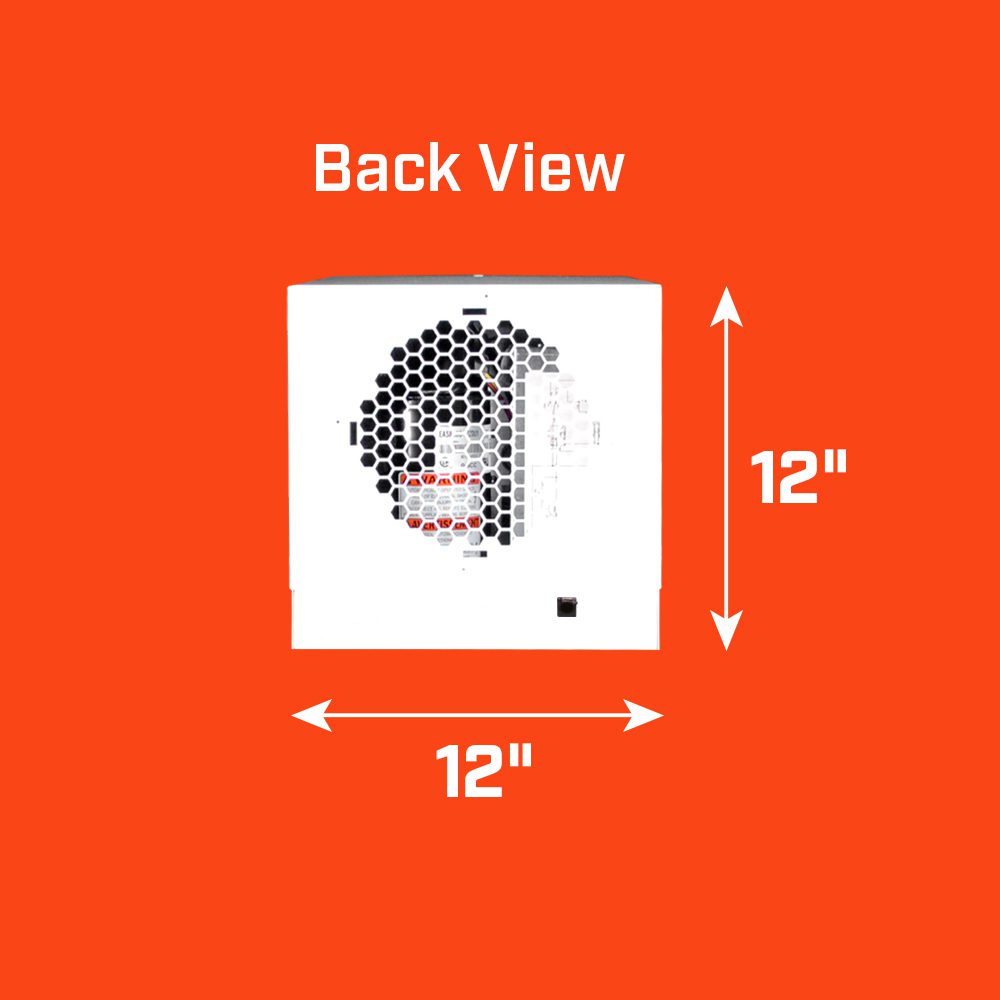

• Rotatable exhaust outlet provides for horizontal or vertical discharge
• Engineered for low temperature operation and the air flow issues that crawl spaces present
• Ducting options for divided spaces
• Auto restart allows the dehumidifier to automatically restart after a power outage

Water Removal Rates(Pints/Day)

• @ 80°F and 60%RH - 70 Pints / 8.75 Gallons
• @ 65°F and 60%RH - 40 Pints / 5 Gallons

• Model: 4033600

PERFORMANCE

• Water Removal:
• @ 80°F and 60%RH - 70 Pints / 8.75 Gallons
• @ 65°F and 60%RH - 40 Pints / 5 Gallons
• Efficiency:
• 5.0 Pints/kWh
• 4.2 Pints/kWh
• Energy Factor:
• 2.4 L/kWh
• 2.0 L/kWh
• Blower: 150 CFM @ 0.0" WG
• Operating Temperature: 49°F Min., 95°F Max.
• Crawl Space Sizing: 1,800-2,600 Sq. Ft. / 9,000-13,000 Cu. Ft.
• Basement Sizing: 1,800-2,200 Sq. Ft. / 18,000-22,000 Cu. Ft

ELECTRICAL

• Power Cord: 9', 115 VAC, Ground Plug Type B (USA, MEX, CAN, JPN)
• Power: 580 watts @ 80°F and 60% RH
• Supply Voltage: 115 volt – 1 phase – 60 Hz
• Current Draw: 5.1 amps

SPECIFICATIONS

• Drain Connection: 3/4" Threaded Female NPT
• Drain Hose: 8' Direct Gravity Drain Hose (5/8" ID x 7/8" OD)
• Refrigerant: R410A, 15 oz

UNIT DIMENSIONS

• Width: 12"
• Height: 12"
• Depth: 21"
• Weight: 55 lbs.

SHIPPING

• Shipping Dimensions: 18"W x 18"H x 27"D
• Shipping Weight: 64 lbs.
• Pallet Quantity: 15 per pallet
• UPC Number: 859029004960
• Shipping Options: UPS and LTL
