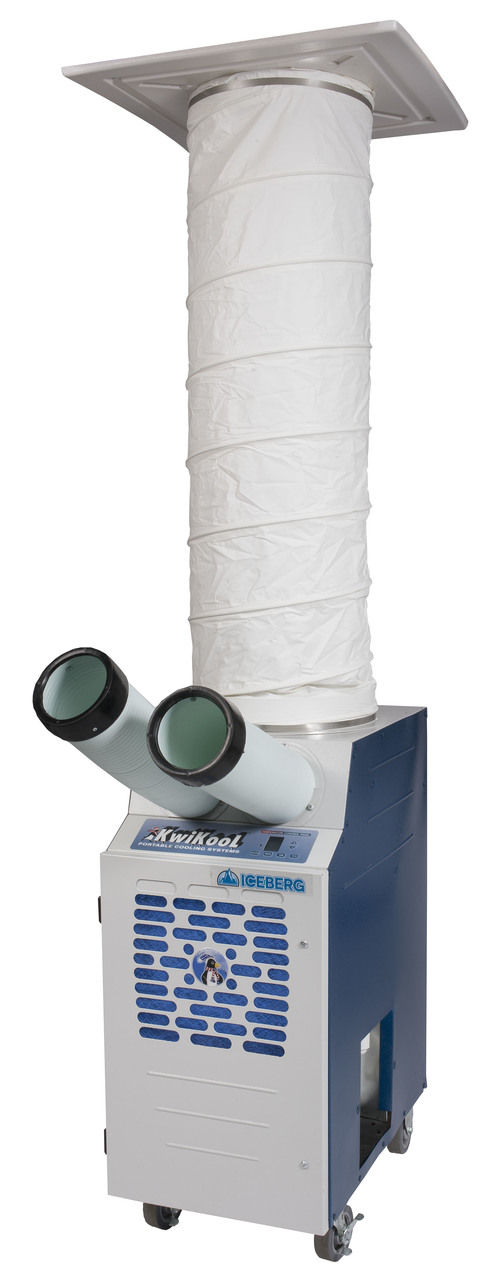

KwiKool KPAC1411-2 Portable Air Conditioner

• Cooling capacity: 13,700 BTU/hr
• Condenser Airflow: 700 cfm
• Operating Temperatures: 70-105 F 50%RH
• Refrigerant: 410A

The Model KPAC1411-2 (nominal 1.1-ton or 13,700 BTU) is the smallest unit in size and capacity in The KPAC II Series, KwiKool’s Single Duct Line of portables. The KPAC1411-2 has an extremely small foot print that is ideal for spot cooling people or equipment in a high ambient environment. The KPAC II Series offers a quick cooling solution with its “plug and play” technology that tops the competition with its small size, strong air flow, and easy installation. The KPAC II Series achieves a 20 degree F. temperature differential across its coil. This means that 95 degree F. input air will produce 75 degree F. output air. For spot cooling applications at a work station the unit will effectively cool a person or equipment within 5 to 7 feet of the unit. The KPAC II Series out performs and out lasts other portables, all at a price that is comparable to other products.

The KPAC1411-2 runs on a standard 115-volt/15-amp circuit with automatic restart after a power failure. The unit comes with a 3.5-gallon self-contained condensate tank with float activated unit cut off, that is manually emptied. Installation takes less than ten minutes for easy set up, using the single duct ceiling kit.

• MADE IN USA
• 13,700 BTU/H – 1.15 Ton capacity air cooled
• Compact yet Powerful
• Runs on 115V 15 amp circuit
• Wide Operating range of 70ºF-110ºF
• ETL and CETL listed to UL and CSA standards
• Single duct system for easy installation.
• Multi-function microprocessor control with a large, easy-to-read LCD display
• Easy-touch control pads make changing system settings a snap.
• 3.5 gallon self-contained condensate reservoir tank for easy removal and emptying.
• Condensate overflow protection with audible alarm
• Capillary tube construction for simplicity.
• Heavy duty compressor with automatic restart and short cycle protection.
• Motors and compressors have overload protection.
• High-pressure safety with manual reset.
• Automatic freeze protection using microprocessor freeze stat.
• Heavy-duty locking casters.
• Rifle tube coils for efficient heat transfer.
• Fully insulated, heavy duty galvanized steel cabinet with Kwikool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation.
• Filter dryer for Moisture protection
• Easy access Service Door
• Shraeder service ports.

Cooling Capacity

• BTU/hr @ 95F at 60% RH: 13,700 (1.1-Ton)

Compressor Data

• Compressor Type: Hermetic Rotary
• Operating Temperatures: 70-105 F 50%RH
• Refrigerant: 410A

Fan Data

• Evaporator
• Fan Type (Centrifugal): Direct Drive
• Air Flow (CFM): 460/1 Speed
• Supply Air Device: 2 - 5" Dia. x 16" Air Chute
• Supply Air Duct max. length: 25'
• Condenser
• Fan Type (Centrifugal): Direct Drive
• Air Flow (CFM) (VFD Controlled): 700
• Condenser Duct Specs (optional): 1 - 12" Dia. x 8' Length
• Condenser Duct Max. Length: 25'

Electrical Data

• Power Supply (Volts): 115/Single Phase
• Current Consumption (Amps): 11.5
• Power Consumption (KW): 1.19
• Maximum Circuit Breaker (Amps): 20
• Recommended Breaker Size: 15 or 20
• Minimum Circuit Ampacity (Amps): 17.085
• Min./Max. Voltage: 105-125
• Power Cord Gauge/Length: 14/6'
• Plug Configuration: NEMA 5-15

Dimensional Data

• Width x Depth x Height (Inches): 16.325" x 26" x 37.25"
• Weight (Lbs.): 157
• Shipping Weight (Lbs.): 207
• Ceiling Kit Weight (Lbs.): 22
• Shipping Weight w/ Ceiling Kit: 229

Safety Device Data

• Compressor Overload: Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Freeze Stat
• High Pressure Switch: Manual
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Microprocessor/Digital
• Condensate Pump Overflow: Yes
• Condensate Tank Overflow: Yes

• Owners Manual
• Spec Sheet
• KPACII_flyer 1-17-16

• Ceiling Kit

1 year from the date of purchase, KWIKOOL PORTABLE COOLING SYSTEMS. KwiKool warrants that its products shall be free from defects in material and workmanship. If equipment develops such defects in this period, it will be repaired at the rates and time established by us or replaced at our discretion. The effective warranty date is the ship date of the unit or the installation date if properly documented; but not to exceed (18) eighteen months of ship date.
