Hotpoint 9K PTAC Cooling with Electric Heat 230/208V 15 AMP, AHES09D2XXA

• Model: AHES09D2XXA
• Cooling capacity: 9,400/9,200 BTU
• EER: 11.3/11.4
• Voltage: 208/230V
• Refrigerant type: R32
• POWER CORD  REQUIRES 15 AMP CIRCUIT

Features and Benefits:

• 2 Fan Speeds: Give guests control over their comfort with two fan speeds to choose from.
• 4 Temperature-Limiting Options: Easily select one of four temperature ranges for peak efficiency and total customer comfort.

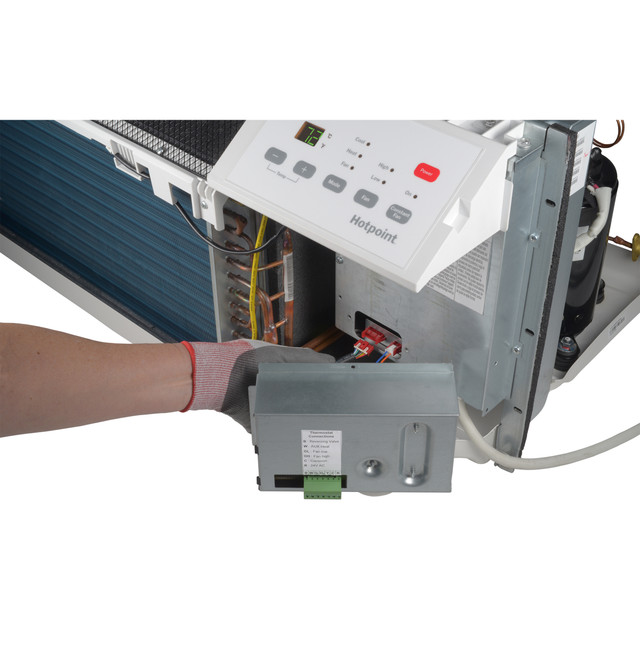

• Coverless Control Panel: Easier serviceability–less screws, easier access.
• Automatic Emergency Heat: Keep guests comfortable with a heating option that automatically kicks in when temperatures drop and heat pumps shut down.
• Auto Dimming Display: No control door and streamlined control panel enhances appearance and reliability.
• Freeze/Frost & Overheat Protection: Automatic controls keep ambient space within desired range.
• Self-Diagnostics: Quickly and easily identify service needs with intuitive fault code display.
• Slinger Ring Condensate Removal: Reduces condensate volume and increases energy efficiency during cooling.
• Auto Power Recovery: In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls.
• Constant Fan Button: Gives guests the option of running the indoor fan continuously even if the unit is in off mode.

Additional Features:

• 24 VAC Remote wall thermostat compatibility (Requires thermostat connection kit)
• Tangential fan for smooth airflow and sound
• Factory attached power cord on all models*
• Heat pump models include staged heating
• Energy-efficient heat pump models available
• Removable filters for easy maintenance

Capacity:

• Cooling BTUH (MIN): 9,400 Btu
• Cooling BTUH (MAX): 9,200 Btu
• Cooling EER (BTUH / Watt): 11.3/11.4
• Airflow (CFM): 500/420

Features:

• "SmartFan" Fan Cycle: Yes
• Auto Power Recovery: Yes
• Chassis Type: Slide-In
• Control Type: Electronic
• Discharge Grille: 2-position
• Fan Motor: 2
• Fan Speed Selections:
• 3 Cooling
• 3 Heating
• 3 Fan Only
• Heat - Cool: Yes
• Heating System: Electric Resistance
• Manual Vent Control: Hidden
• Outdoor Vent / Exhaust: Yes
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Type: R32
• Rotary Compressor: Yes
• Temperature Range: 62 - 80 F
• Unit Features:
• Freeze Sentinel
• Automatic Indoor Frost Control
• Auto Power Recovery
• Remote Thermostat Compatibility
• Central Desk Control Compatibility
• Power Cord (LCDI) included
• Venting Features:
• Concealed Manual Vent Control
• Vent Air Filter

Power / Ratings:

• Cooling - Amperes: 4.0/3.8
• Cooling - Watts: 830/805
• Heating - Electric - Heater Watts: 2500
• Electric Heating Capacity (kw): 2.5
• Sensible Heat Ratio: 79
• Refrigerant Charge (Oz): 13.76
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V

Weights & Dimensions:

• Approximate Shipping Weight: 94 lb
• Net Weight: 84 lb
• Overall Depth: 21 in
• Overall Height: 16 in
• Overall Width: 42 in
