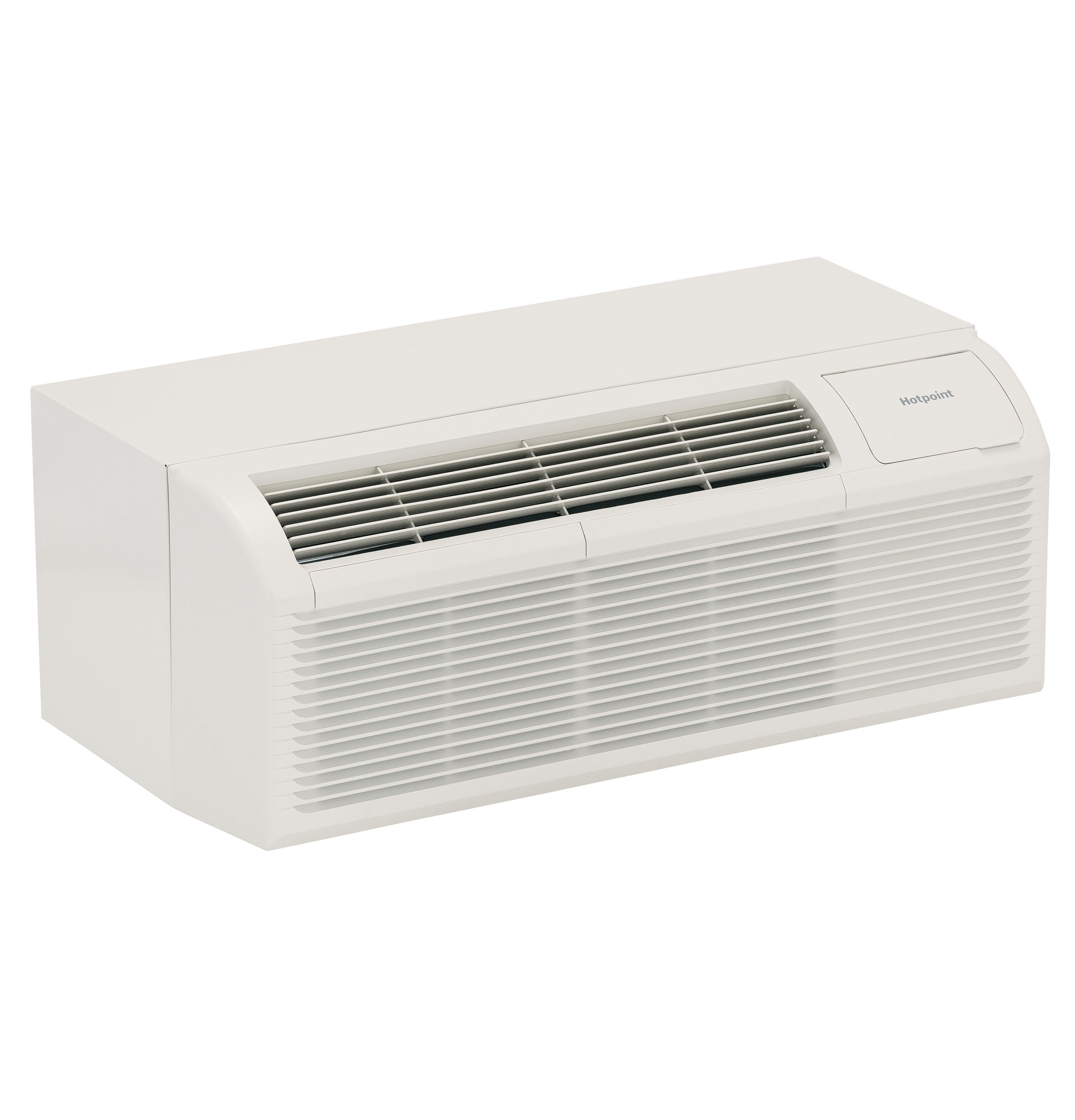

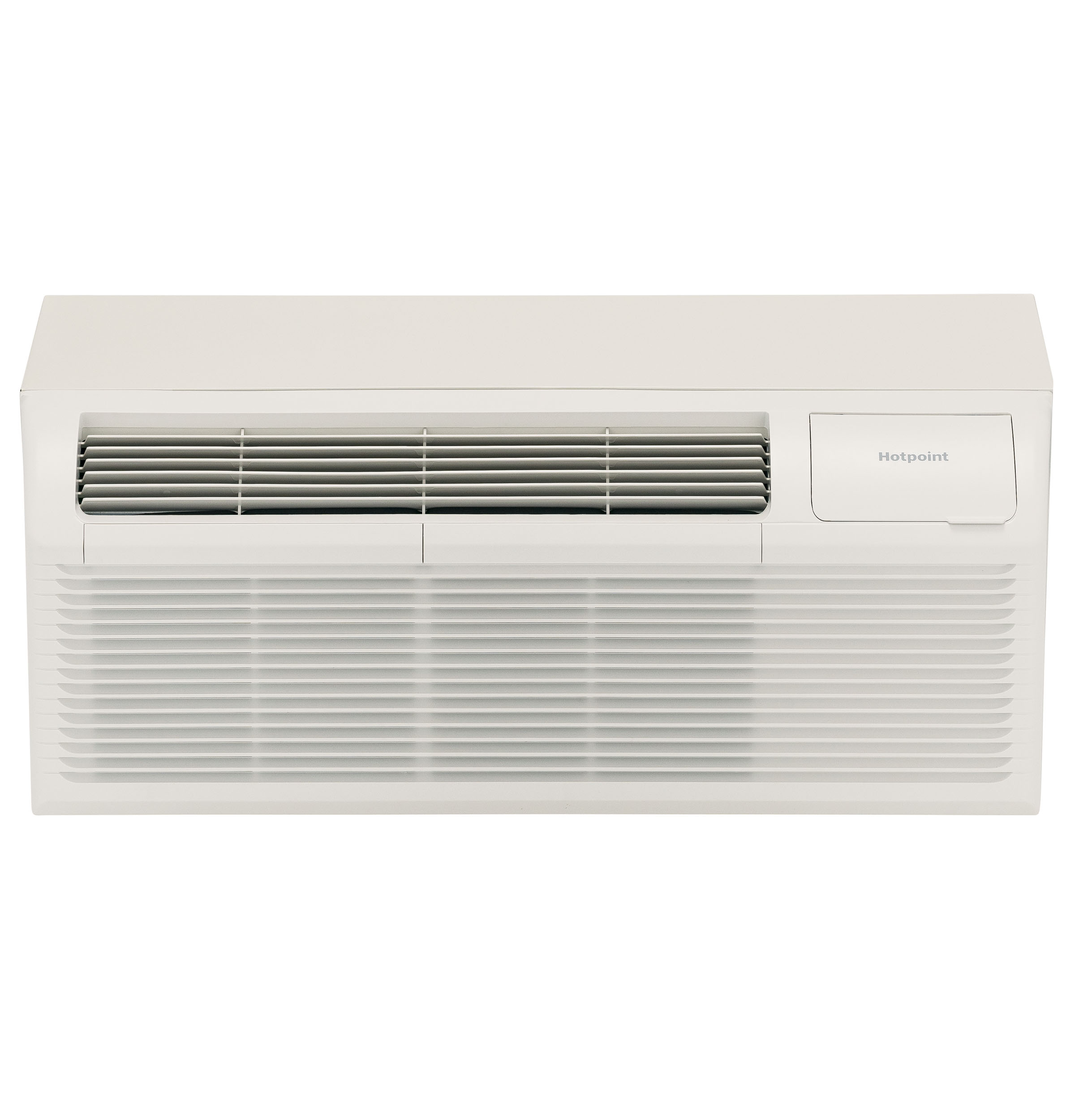

Hotpoint 9K PTAC Cooling w/ Electric Heat 208/230V 20 AMP, AH11E09D3B

• Model: AH11E09D3B
• Cooling capacity: 9,200/9,000 BTU
• Heating capacity: 10,900/8,900 BTU
• EER: 11.3
• Voltage: 208/230V
• Refrigerant type: R-410A
• POWER CORD  REQUIRES 20 AMP CIRCUIT

Features and Benefits

• 3-speed fan: Give guests control over their comfort with three fan speeds to choose from
• 4-temperature limiting options: Easily select one of four temperature ranges for peak efficiency and total customer comfort
• Freeze and frost protection: Automatic freeze and indoor frost control keep units operating in peak condition
• Automatic emergency heat: Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
• Auto power recovery: In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
• Self diagnostics: Quickly and easily identify service needs with a nine-point diagnostic code system
• Backed by an industry leader: With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
• Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty: Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

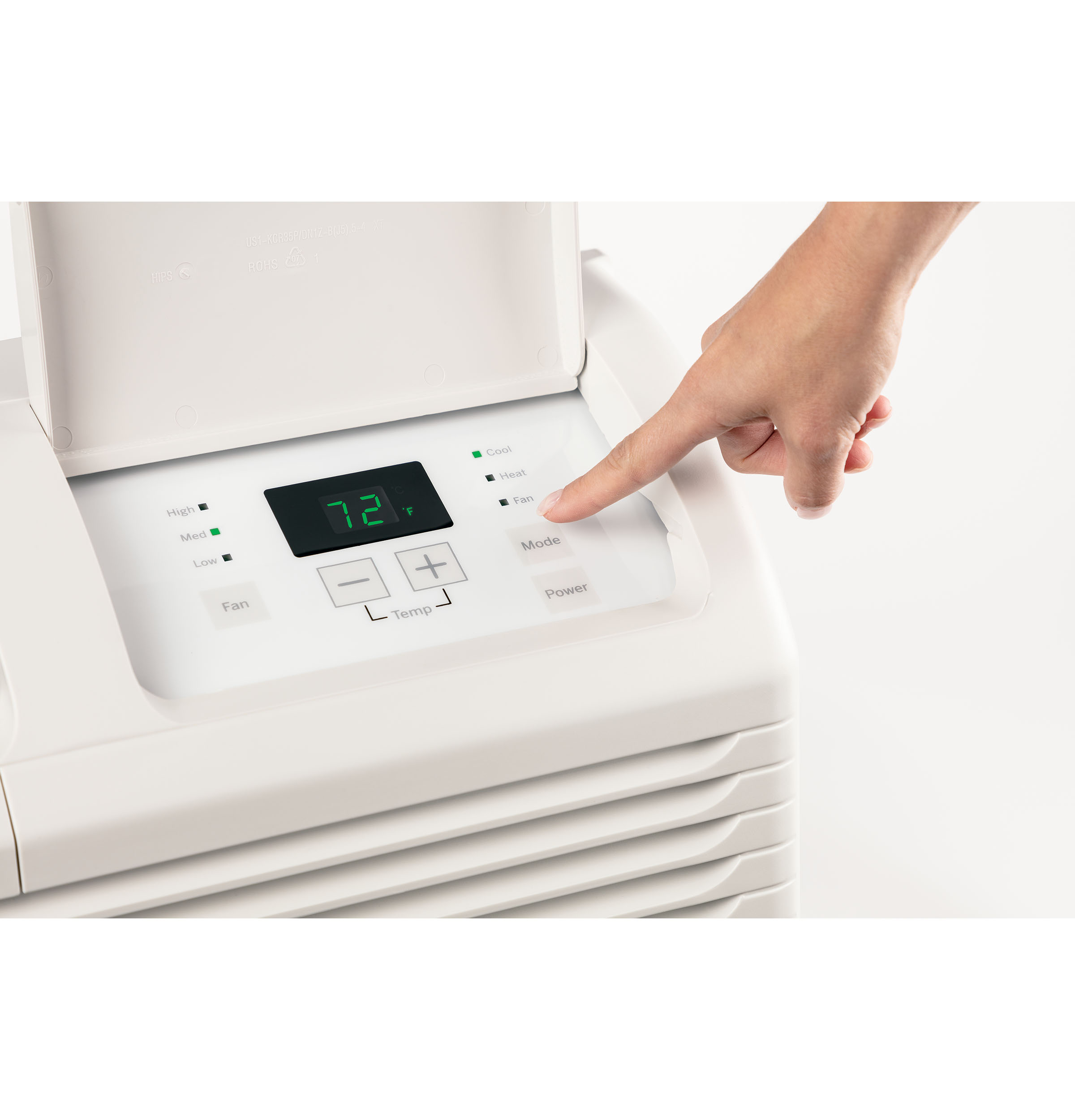

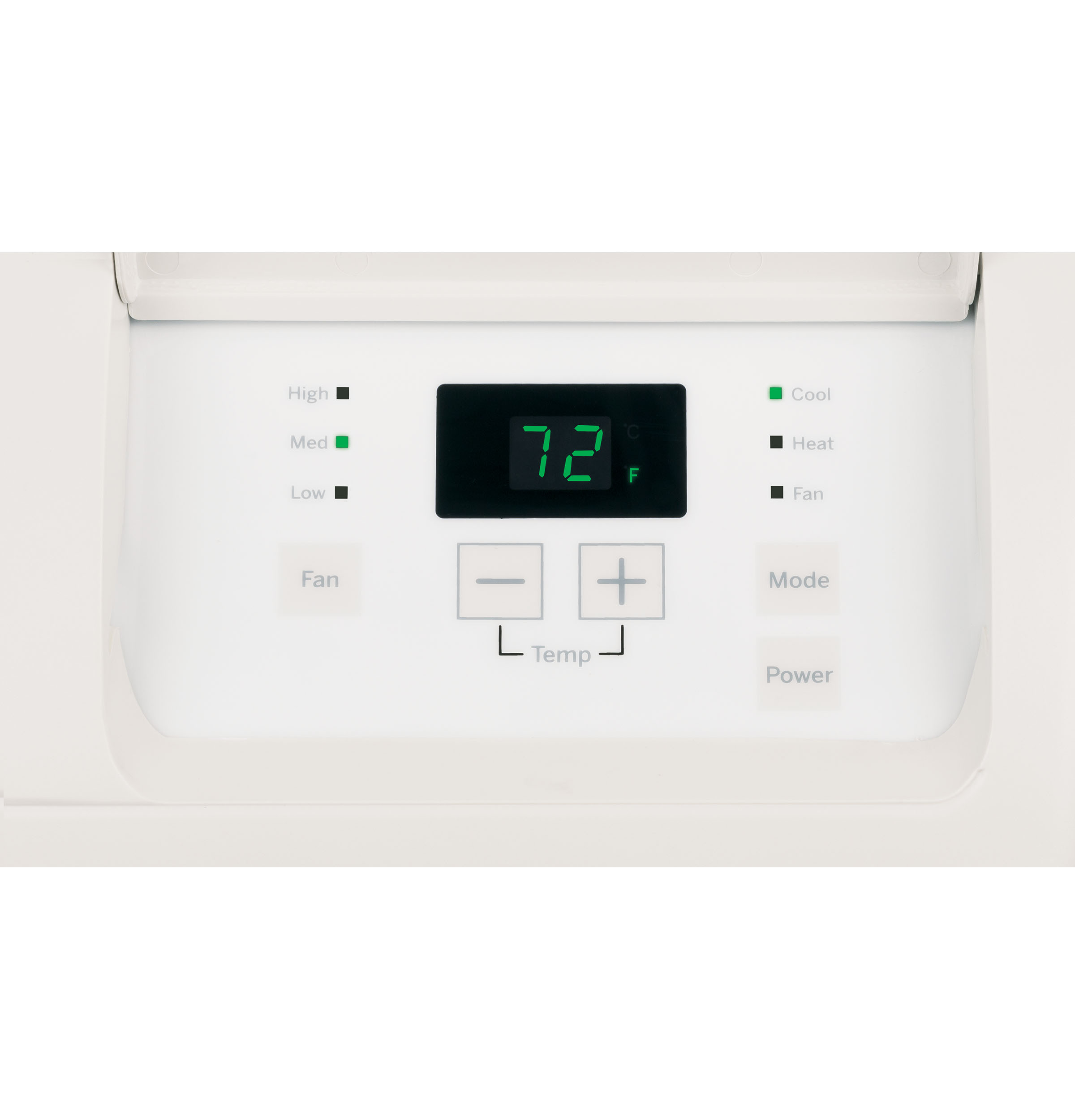

• Intuitive display: Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
• Power cord (LCDI) included: Hotpoint PTACs come with everything needed for a quick and easy installation
• Remote thermostat compatibility
• Works with central desk control systems
• Tangential fan for air flow and smooth sound

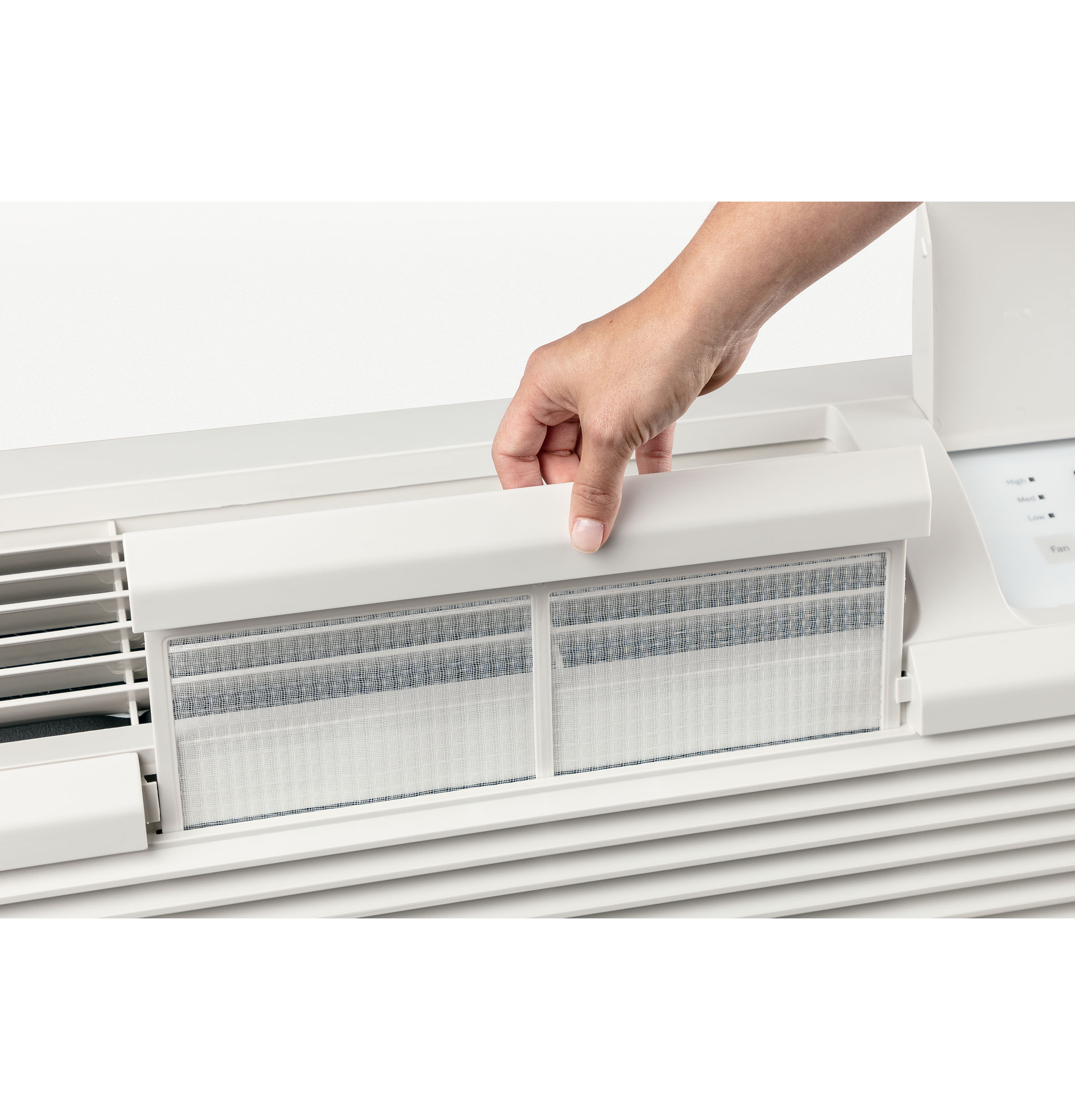

• Removable filters for easy maintenance

Capacity

• Cooling BTUH (MIN): 9000.0 Btu
• Cooling BTUH (MAX): 9200.0 Btu
• Cooling EER (BTUH / Watt): 11.3
• CFM Indoor Fan High: 435
• CFM Indoor Fan Medium: 417
• CFM Indoor Fan Low: 394
• Heating - Reverse Cycle - BTUH: 10,900/8900

Features

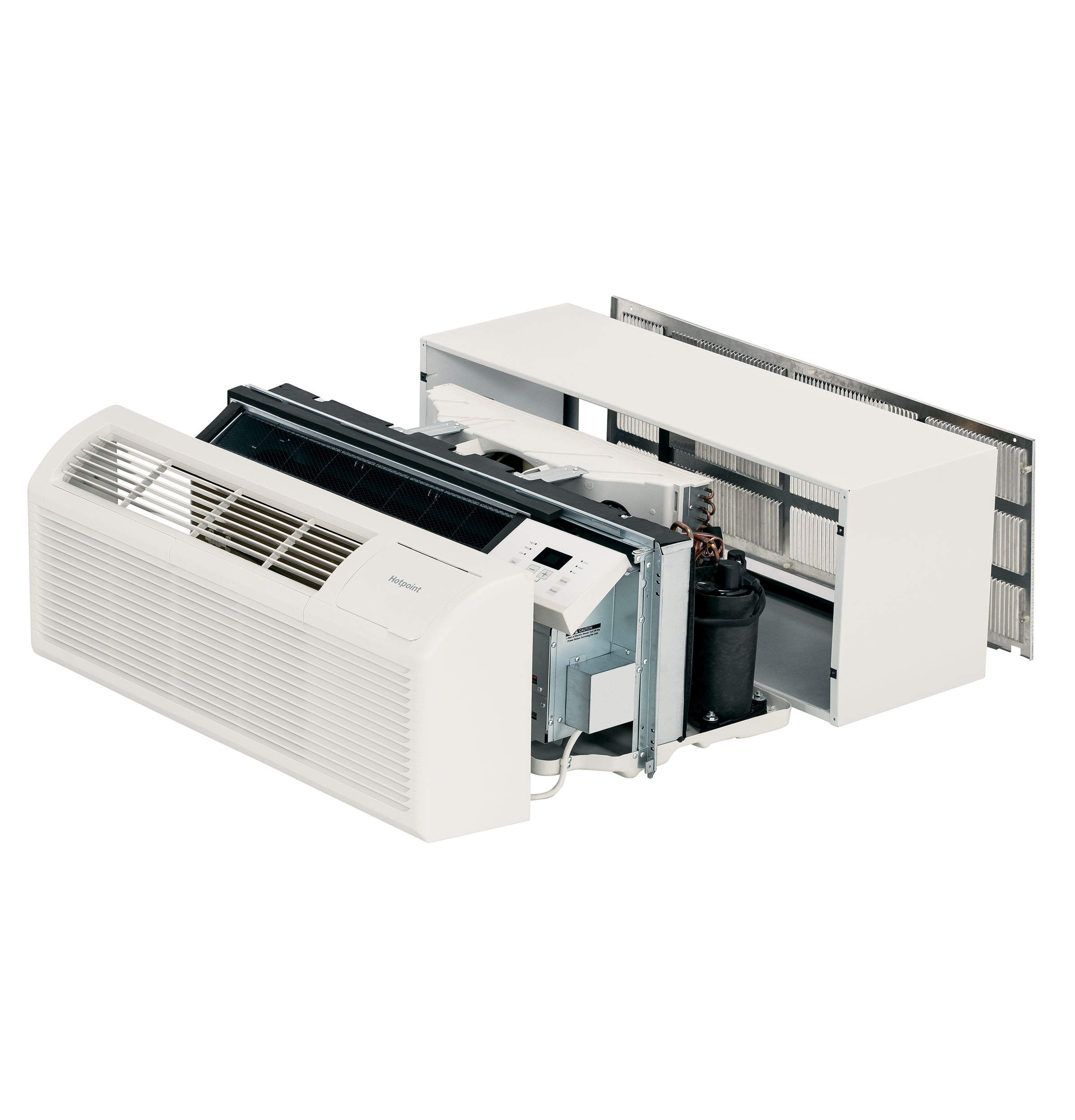

• Chassis Type: Slide-In
• Control Type: Electronic
• Discharge Grille: 2-position
• Fan Motor: 2
• Fan Speed Selections: 3 Cooling, 3 Fan Only, 3 Heating
• Heat - Cool: Yes
• Manual Vent Control: Hidden
• Rotary Compressor: Yes
• Venting Features: Concealed Manual Vent Control, Vent Air Filter
• Heating System: Electric Resistance
• Outdoor Vent / Exhaust: Yes
• Refrigerant Type: R410A
• Temperature Range: 61->86 F
• Color Appearance: White
• Installation: Through-the-Wall

Power / Ratings

• Cooling - Amperes: 3.5/3.8
• Cooling - Watts: 814/796
• Heating - Electric - Heater Watts: 3535/2935
• Heating - Electric - Heater Amps: 15.67/14.26
• Voltage (MIN): 208.0 V
• Voltage (MAX): 230.0 V

Weights & Dimensions

• Approximate Shipping Weight: 130 lb
• Net Weight: 105 lb
• Overall Depth: 21 in
• Overall Height: 16 in
• Overall Width: 42 in
