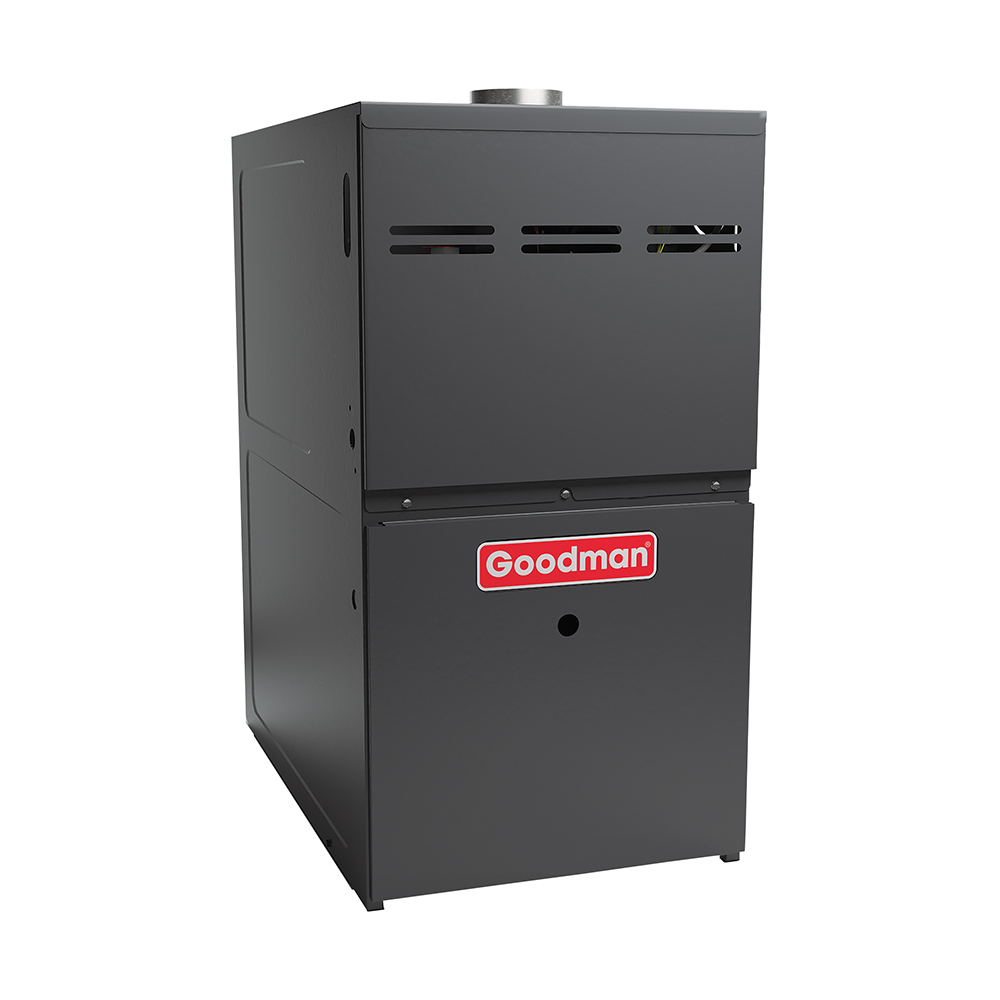

Goodman 80K BTU 2000 CFM 80% AFUE Gas Furnace, GM9S800805CU

• Model: GM9S800805CU
• Input (BTU/h): 80,000
• CFM: 2000
• AFUE: 80%
• Cabinet Width: 21"
• = < 14NG/J NOx

Standard Features

• Heavy-duty stainless-steel dualdiameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, modulating draft inducer
• Self-diagnostic control board
• Multi-speed ECM blower motor
• Eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVUAPCD). This furnace complies with the 14 ng/J NOx emission limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905.
• AHRI Certified; ETL Listed

Cabinet Features

• Installation: upflow, horizontal left or right
• Convenient left or right connection for gas and electrical service
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Foil faced insulated heat exchanger

Heating Capacity

• Input: 80,000
• Natural Gas Output: 64,000
• AFUE: 80
• CFM: 2000
• Available AC @ 0.5” ESP: 5
• Temperature Rise Range (°F): 35-65

Circulator Blower

• Size (D x W): 10" x 10"
• Horsepower @1075 RPM: 1
• Speed: 9
• Vent Diameter: 4"
• No. of Burners: 4

Electrical Data

• Min. Circuit Ampacity: 12.7
• Max. Overcurrent Device (amps): 15

Weights & Dimensions

• Product Height (in.): 33.5 in
• Product Width (in.): 14 in
• Product Depth (in.): 28 in
• Shipping Weight (lbs.): 116 lbs.

• Product Specs
• Product Brochure
• Parts Manual
• Nomenclature
• Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
• Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)

• 10 Years Parts Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
• Lifetime Heat Exchanger Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
