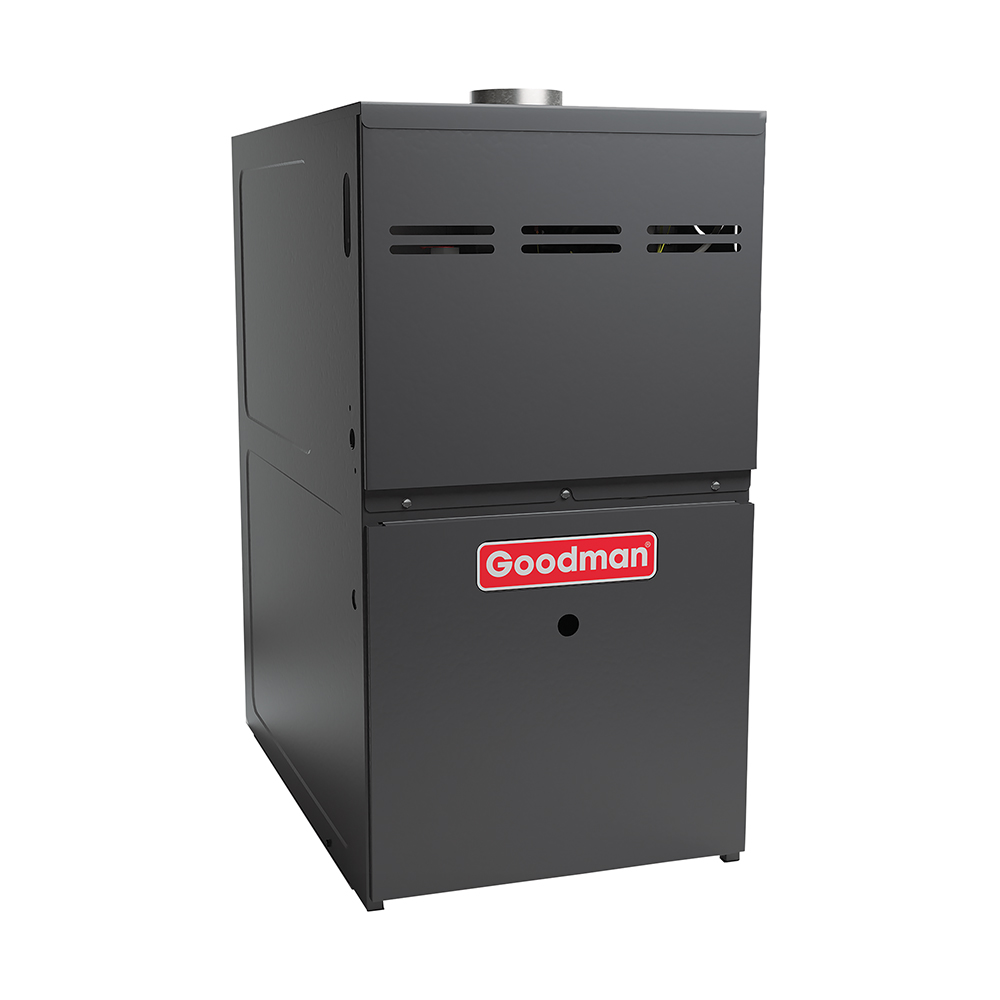

Goodman 80K BTU 1600 CFM 80% AFUE Gas Furnace, GM9S800804CX

(No reviews yet) Write a Review
$1,078.00

Free Shipping

Free shipping to lower 48 states only, otherwise, please call for additional pricing.
Reviews
Loading review.....
Description
  • Overview
  • Features
  • Tech Specs
  • PDFs
  • Warranty
  • Reviews


  • Model: GM9S800804CX
  • Input (BTU/h): 80,000
  • CFM: 1600
  • AFUE: 80%
  • Cabinet Width: 21"
  • < 40 NG/J NOx

Standard Features

  • Heavy-duty aluminized-steel dualdiameter tubular heat exchanger
  • Single-stage gas valve
  • Durable Hot-surface igniter
  • Quiet, single-speed draft induced
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • Multi-speed ECM blower motor
  • California Low NOx emissions models available
  • Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
  • AHRI Certified; ETL Listed

Benefits

  • High reliability and quality
  • Durable and long igniter life
  • Provisions for electronic air cleaner and humidifier
  • Energy Efficient and quiet circulation
  • Self-diagnostic control board with constant memory

Cabinet Features

  • Installation: GM9S80 -upflow, horizontal left or right
  • Convenient left or right connection for gas and electrical service
  • Heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil faced insulated heat exchanger

Heating Capacity

  • Input: 80,000
  • Natural Gas Output: 64,000
  • LP Gas Output: 64,000
  • AFUE: 80
  • CFM: 1600
  • Available AC @ 0.5” ESP: 4
  • Temperature Rise Range (°F): 35-65

Circulator Blower

  • Size (D x W): 10" x 10"
  • Horsepower @1075 RPM: 0.75
  • Speed: 9
  • Vent Diameter: 4"
  • No. of Burners: 4

Electrical Data

  • Min. Circuit Ampacity: 12.45
  • Max. Overcurrent Device (amps): 15

Weights & Dimensions

  • Product Height (in.): 33.5 in
  • Product Width (in.): 14 in
  • Product Depth (in.): 28 in
  • Shipping Weight (lbs.): 132 lbs.
  • 10 Years Parts Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
  • Lifetime Heat Exchanger Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
