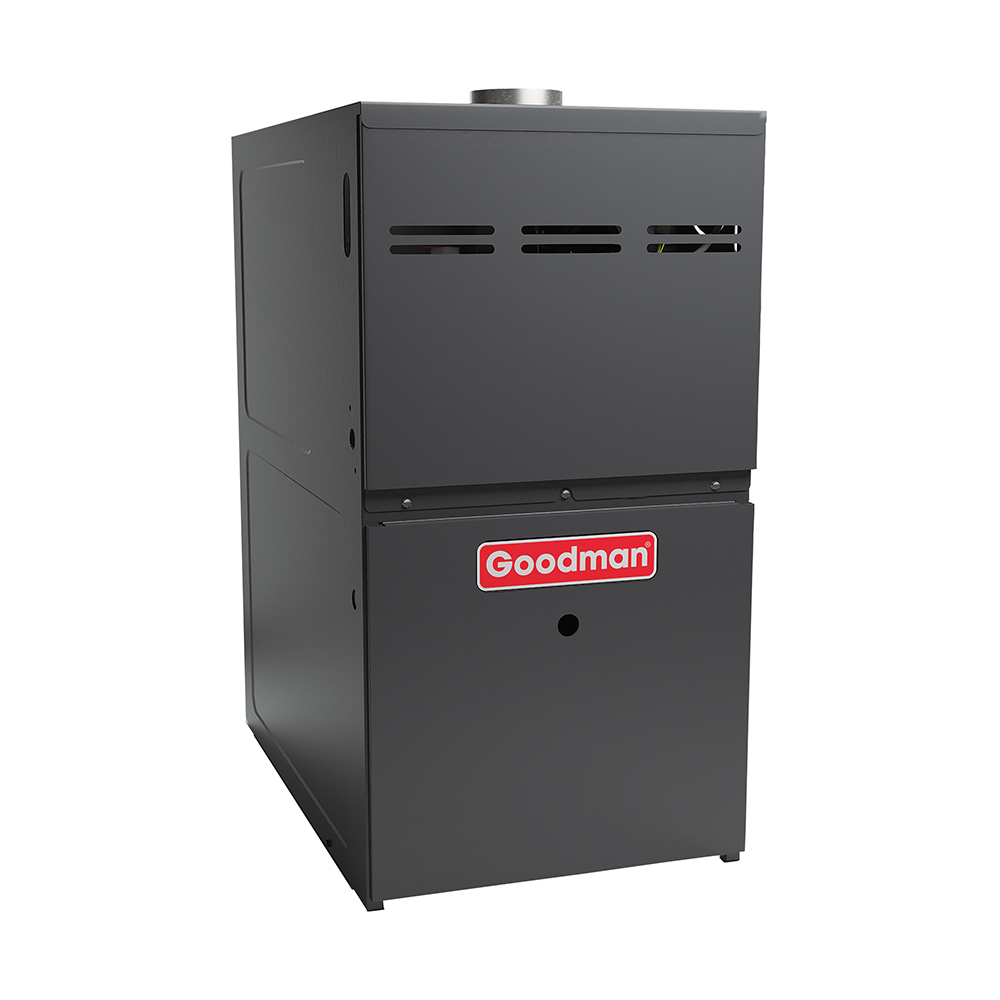

- Model: GM9S800804CN
- Input (BTU/h): 80,000
- CFM: 1600
- AFUE: 80%
- Cabinet Width: 21"
- > 40 NG/J NOx
Standard Features
- Heavy-duty aluminized-steel dualdiameter tubular heat exchanger
- Single-stage gas valve
- Durable Hot-surface igniter
- Quiet, single-speed draft induced
- Self-diagnostic control board
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor
- California Low NOx emissions models available
- Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
- AHRI Certified; ETL Listed
Benefits
- High reliability and quality
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Self-diagnostic control board with constant memory
Cabinet Features
- Installation: GM9S80 -upflow, horizontal left or right
- Convenient left or right connection for gas and electrical service
- Heavy-gauge steel cabinet with durable baked-enamel finish
- Foil faced insulated heat exchanger
Heating Capacity
- Input: 80,000
- Natural Gas Output: 64,000
- LP Gas Output: 64,000
- AFUE: 80
- CFM: 1600
- Available AC @ 0.5” ESP: 4
- Temperature Rise Range (°F): 35-65
Circulator Blower
- Size (D x W): 10" x 10"
- Horsepower @1075 RPM: 0.75
- Speed: 9
- Vent Diameter: 4"
- No. of Burners: 4
Electrical Data
- Min. Circuit Ampacity: 12.45
- Max. Overcurrent Device (amps): 15
Weights & Dimensions
- Product Height (in.): 33.5 in
- Product Width (in.): 14 in
- Product Depth (in.): 28 in
- Shipping Weight (lbs.): 132 lbs.
- 10 Years Parts Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
- Lifetime Heat Exchanger Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
