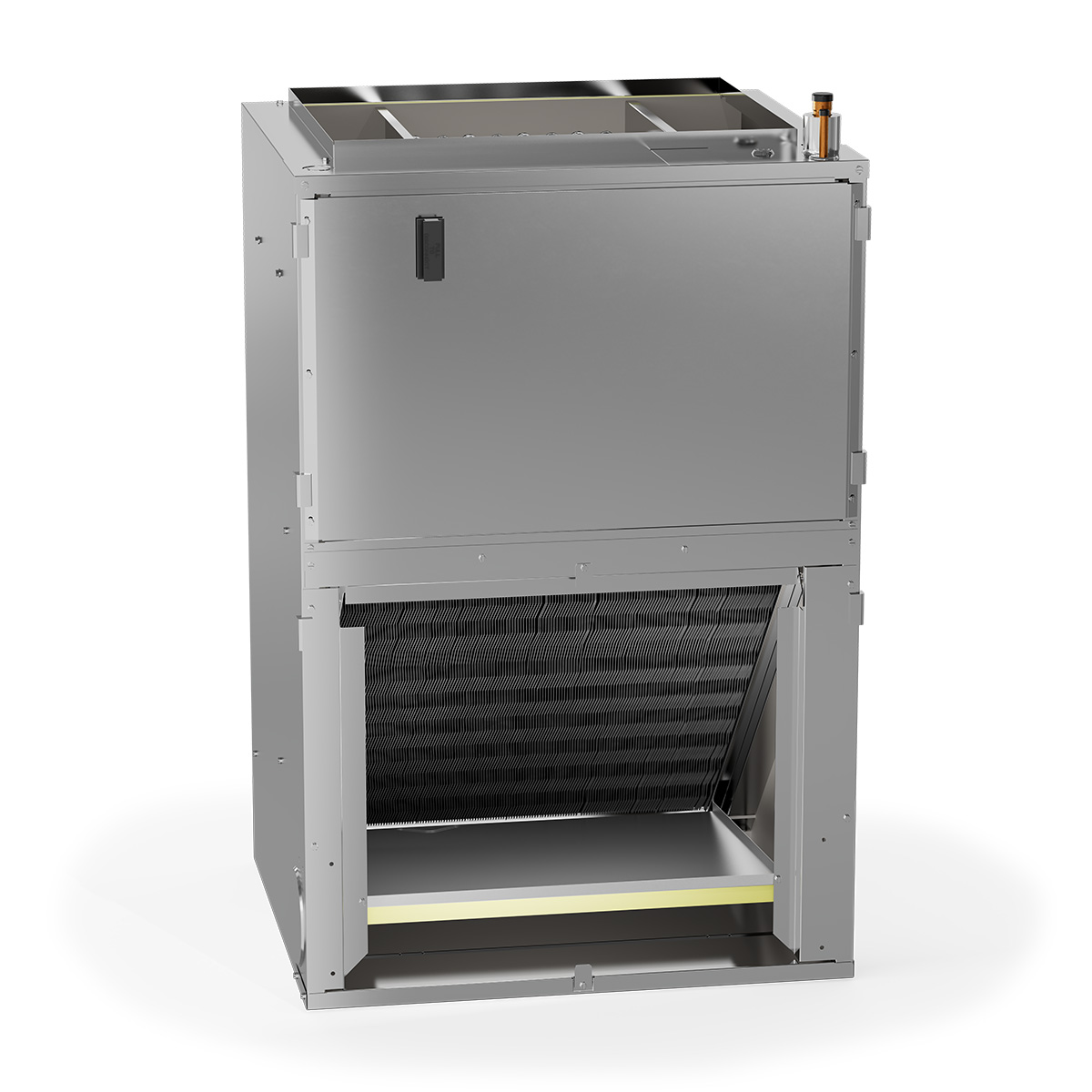

Goodman 3 Ton Wall Mounted Air Handler with 10 kW Heater, 208/230 Volt, AWST36LU1410

• Model: AWST36LU1410
• Cooling (Btu/h): 36,000
• Voltage: 208/230 V
• Refrigerant: R410A
• Cabinet Width: 24"

Standard Features

• AWST Models: Equipped with a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• Built-in filter rack (filter included)
• Large chassis (2½- and 3-ton units) – front return only
• Small chassis (1½- and 2-ton units) – front or bottom return

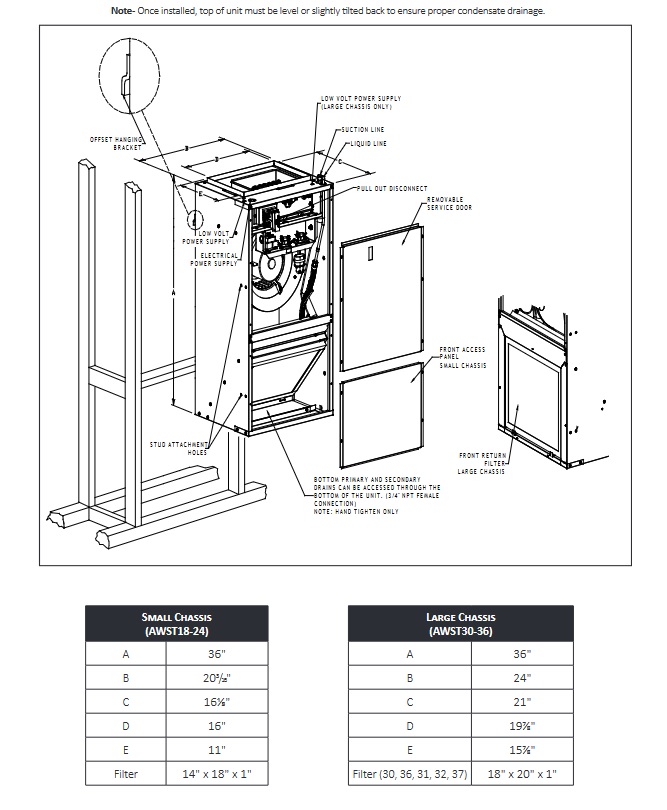

• Wall-hanging bracket provided
• AHRI Certified; ETL Listed

Nominal Ratings

• Cooling (Btu/h): 36,000
• Electric Heat (kW): 10

Blower

• Diameter: 10"
• Width: 8"

Coil Connections

• Liquid: 3/8"
• Suction: 3/4"
• Coil Drain Connect (FPT): 3/4"

Electrical Data

• Voltage: 208/230
• Minimum Circuit Ampacity: 49/55.8
• Max. Overcurrent Device (Amps): 50/60
• Minimum VAC: 197
• Maximum VAC: 253

Blower Motor

• Full Load Amps (FLA): 3.9
• Horsepower (HP): 1/2

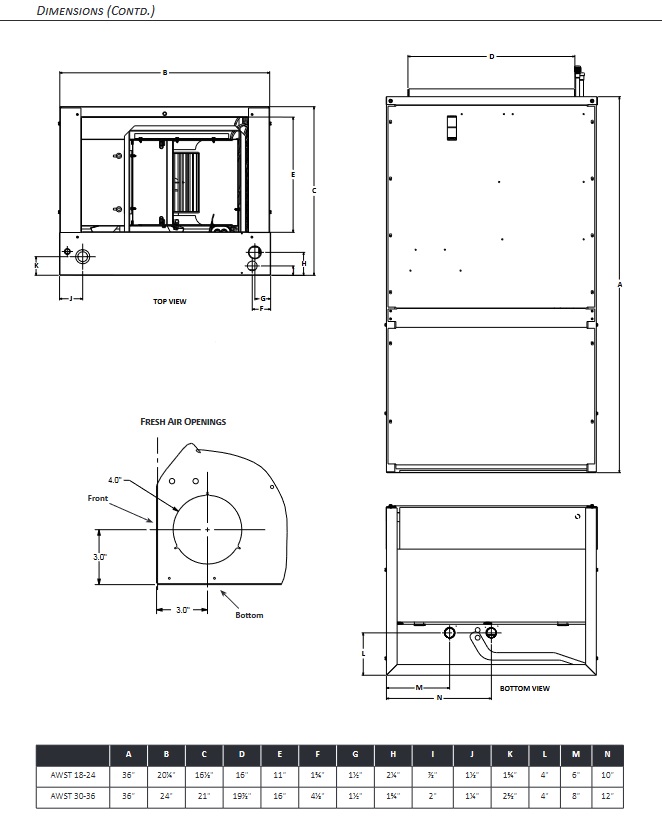

Weights & Dimensions

• Product Height (in.): 36 in
• Product Width (in.): 20-1/4 in
• Product Depth (in.): 16-1/4 in
• Shipping Weight (lbs.): 109 lbs.
