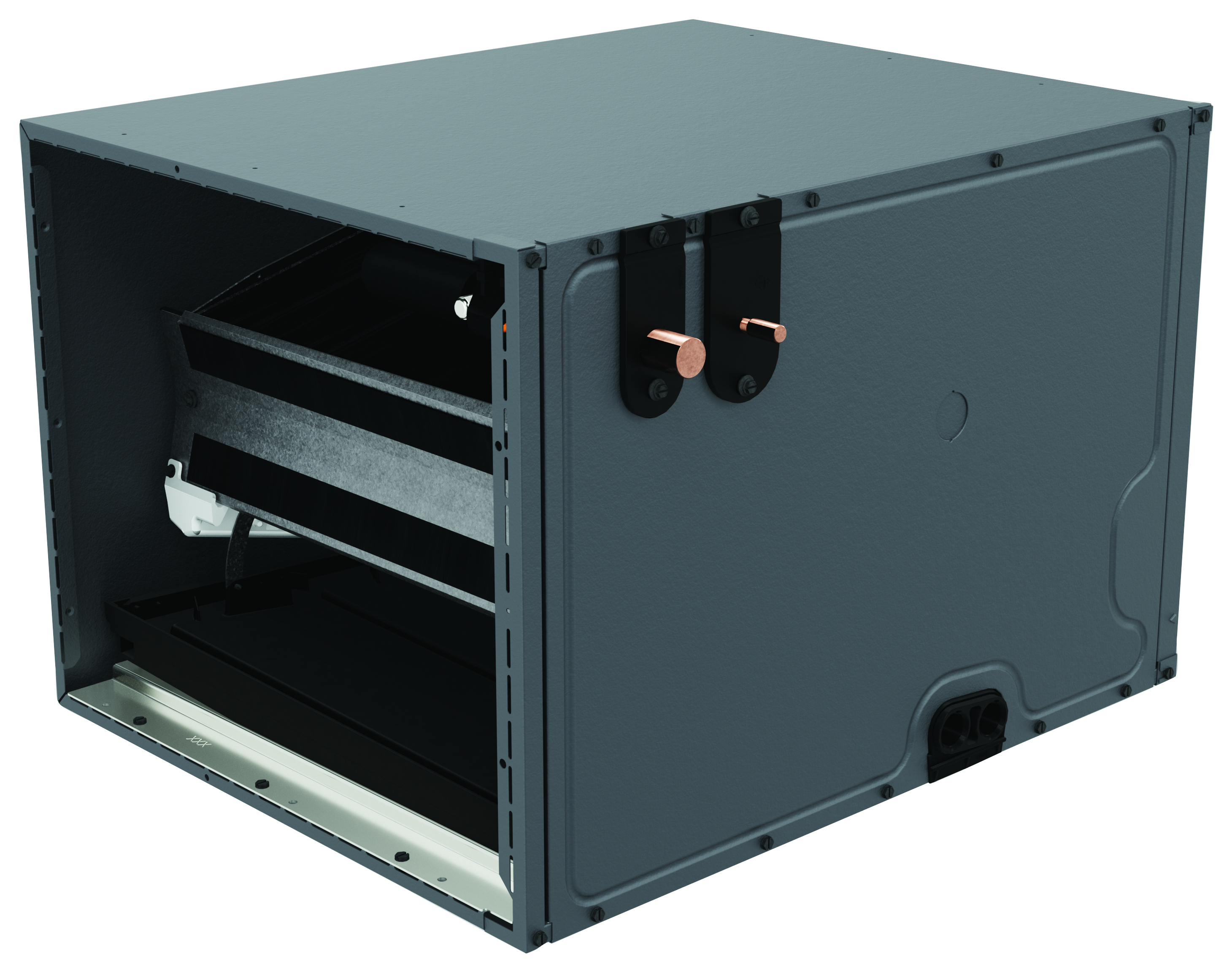

Goodman 3 Ton Horizontal A Coil, Cased - Painted, TXV Included, 17.5" Width, CHPTA3630B4

(No reviews yet) Write a Review
$661.00

Free Shipping

Free shipping to lower 48 states only, otherwise, please call for additional pricing.
Reviews
Loading review.....
Description
  • Overview
  • Features
  • Tech Specs
  • PDFs
  • Warranty
  • Reviews


  • Model: CHPTA3630B4
  • Nominal Capacity Range: 3 Tons
  • Cased Height: 30" Coil
  • Nominal Width for Gas Furnace: 17.5" Width
  • Refrigerant: R-410A only

Standard Features

  • Internal factory-installed thermal expansion valves (TXV) for cooling and heat pump applications
  • Rust-resistant high-temperature thermoplastic drain pans feature a low water-retention design
  • All-aluminum evaporator coil
  • Check flowrater for cooling and heat pump applications
  • Rifled aluminum tubing and corrugated aluminum fin coil
  • CHPTA models include a single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan
  • AHRI certified; ETL listed

Benefits

  • Cased Horizontal Cased coils with factory installed TXV are made for split system air conditioners and heat pumps.

Specifications

  • Nominal Tons: 3
  • Connection
    • Liquid: 3/8"
    • Suction: 7/8"

Cabinet Dimensions

  • Product Height (in.): 17.5 in
  • Product Width (in.): 30 in
  • Product Depth (in.): 21 in
  • Shipping Weight (lbs.): 66 lbs.
  • 10 Years Parts Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
