Goodman 2.5 Ton Wall Mounted Air Handler with 5 kW Heater, 208/230 Volt, AWST30LU1405

$917.00

Free Shipping

Free shipping to lower 48 states only, otherwise, please call for additional pricing.
Reviews
Verified Buyer
January 7, 2025 by Eugene W. (United States)
“I needed some help with a product and a gentleman helped me gave me the information i needed so i ordered the unit.”
Verified Buyer
January 6, 2025 by Terry B. (United States)
“Answered inquiries, Promt return calls/emails”
Verified Buyer
January 3, 2025 by Jamie (United States)
“I had a question about a product, called the number, and a very nice gentleman, Howard, was able to direct me to a product that better suited my needs. Amazing.”
Description
  • Overview
  • Features
  • Tech Specs
  • PDFs
  • Warranty
  • Reviews
Overview


  • Model: AWST30LU1405
  • Cooling (Btu/h): 30,000
  • Voltage: 208/230 V
  • Refrigerant: R410A
  • Cabinet Width: 24"
Features

Standard Features

  • AWST Models: Equipped with a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) – front return only
  • Small chassis (1½- and 2-ton units) – front or bottom return
  • Wall-hanging bracket provided
  • AHRI Certified; ETL Listed
Tech Specs

Nominal Ratings

  • Cooling (Btu/h): 30,000
  • Electric Heat (kW): 5

Blower

  • Diameter: 10"
  • Width: 8"

Coil Connections

  • Liquid: 3/8"
  • Suction: 3/4"
  • Coil Drain Connect (FPT): 3/4"

Electrical Data

  • Voltage: 208/230
  • Minimum Circuit Ampacity: 26/29.8
  • Max. Overcurrent Device (Amps): 30/30
  • Minimum VAC: 197
  • Maximum VAC: 253

Blower Motor

  • Full Load Amps (FLA): 3.9
  • Horsepower (HP): 1/2

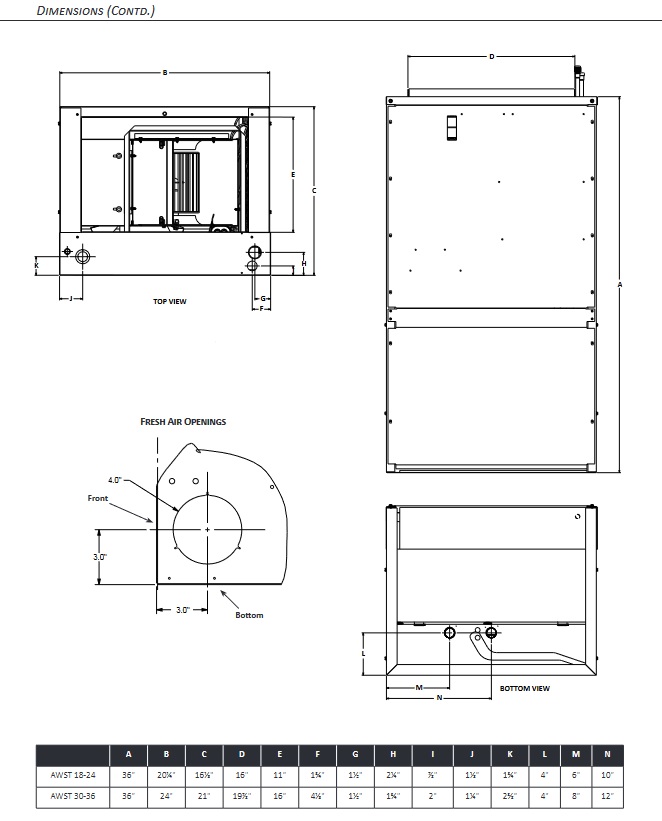

Weights & Dimensions

  • Product Height (in.): 36 in
  • Product Width (in.): 20-1/4 in
  • Product Depth (in.): 16-1/4 in
  • Shipping Weight (lbs.): 109 lbs.
Warranty
  • 10 Years Parts Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
