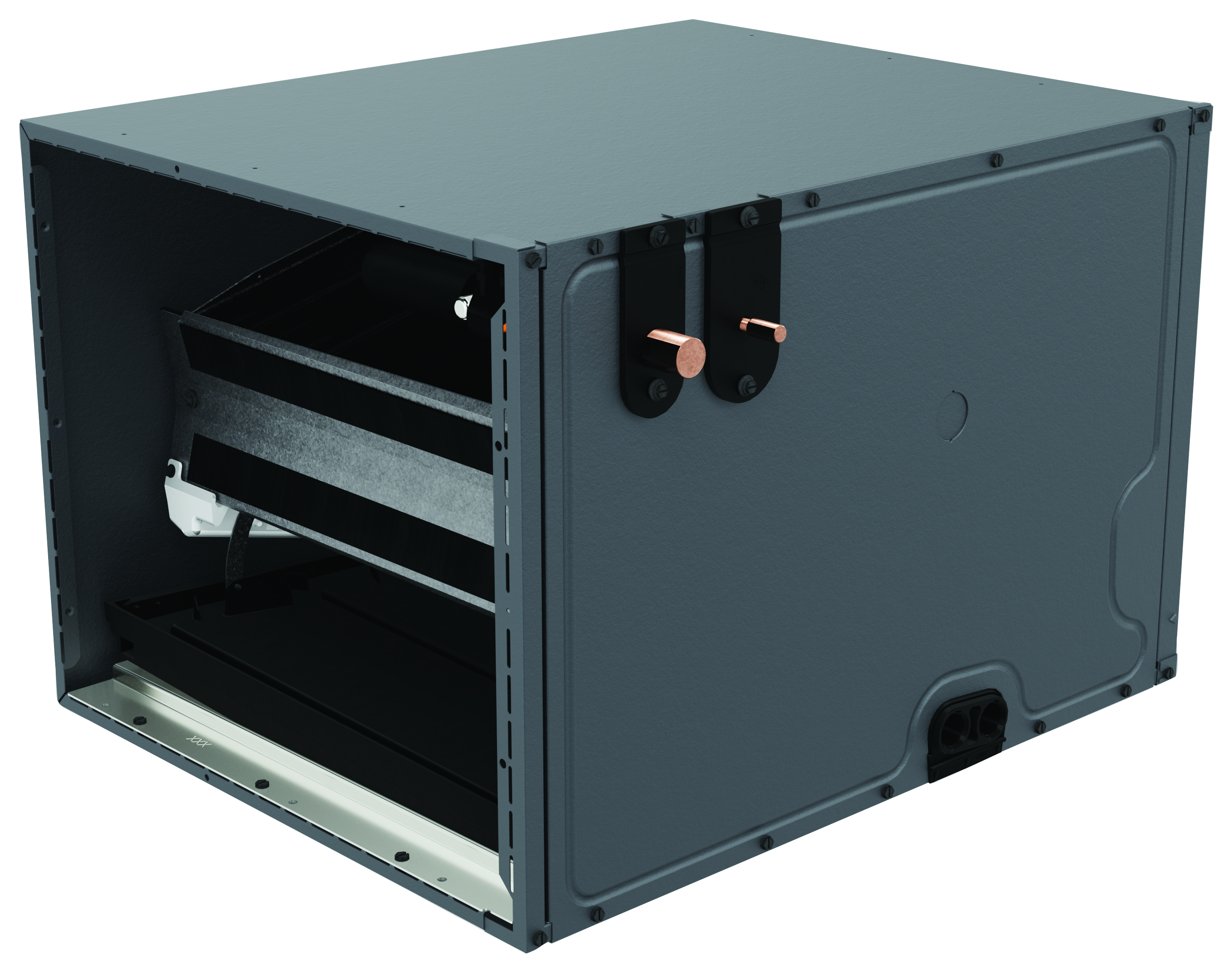

Goodman 2.5 Ton Horizontal A Coil, Cased - Painted, TXV Included, 17.5" Width, CHPTA3026B4

• Model: CHPTA3026B4
• Nominal Capacity Range: 2.5 Tons
• Cased Height: 26" Coil
• Nominal Width for Gas Furnace: 17.5" Width
• Refrigerant: R-410A only

Standard Features

• Internal factory-installed thermal expansion valves (TXV) for cooling and heat pump applications
• Rust-resistant high-temperature thermoplastic drain pans feature a low water-retention design
• All-aluminum evaporator coil
• Check flowrater for cooling and heat pump applications
• Rifled aluminum tubing and corrugated aluminum fin coil
• CHPTA models include a single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed

Benefits

• Cased Horizontal Cased coils with factory installed TXV are made for split system air conditioners and heat pumps.

Specifications

• Nominal Tons: 2.5
• Connection
• Liquid: 3/8"
• Suction: 7/8"

Cabinet Dimensions

• Product Height (in.): 17.5 in
• Product Width (in.): 26 in
• Product Depth (in.): 21 in
• Shipping Weight (lbs.): 61 lbs.

• Product Specs
• Product Brochure
• Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)

• 10 Years Parts Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
